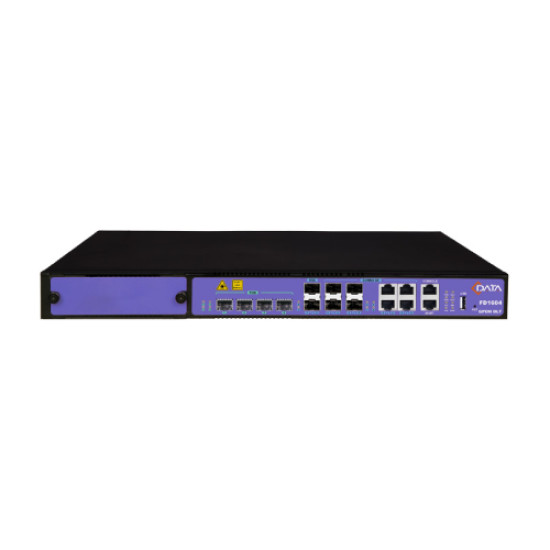

C-DATA FD1604E-C1 4-Port GPON OLT
The C-DATA FD1604E-C1 4-Port GPON OLT is a professional fiber-optic networking device designed for FTTH, ISP, broadband, and enterprise fiber deployments. It provides reliable GPON connectivity with a 63G bandwidth/backplane and supports a transmission distance of up to 20 km, making it suitable for building scalable fiber access networks. The OLT features 4 GPON ports and supports ITU-T G.984.2 GPON standards with Class B+, Class C+, and Class C++ optical options. With a maximum splitting ratio of 1:128, it can support a large number of ONUs/ONTs through an appropriate optical distribution network. The C-DATA FD1604E-C1 GPON OLT provides GPON downstream speeds of up to 2.5Gbps and upstream speeds of up to 1.25Gbps per GPON interface. It uses 1490nm for downstream transmission and 1310nm for upstream reception with an SC/UPC interface. It supports 9/125μm Single Mode Fiber (SMF) and offers a stated transmission distance of up to 20 km, depending on the optical class, fiber infrastructure, split ratio, and network conditions. For network connectivity, the FD1604E-C1 provides 4× 10/100/1000Mbps auto-negotiation Ethernet uplink ports. It also includes a physical SFP slot, allowing flexible fiber networking configurations. The OLT provides a dedicated 100/1000BASE-Tx out-of-band management port and a CONSOLE port for local management. A USB interface is included for configuration backup, software upgrades, and log information management. The C-DATA GPON OLT supports multiple management methods, including CLI, SNMP, Telnet, SSH, and Web management. These options provide network administrators with flexible ways to configure, monitor, troubleshoot, and maintain the fiber access network. The device supports both AC 100–240V, 47–63Hz and DC -40V to -72V power input, with a maximum power consumption of 34.6W.
Why Buy C-DATA FD1604E-C1 From BM Dubai Tech?
BM Dubai Tech is a trusted networking product shop in Bangladesh, offering GPON OLTs, ONUs, fiber-optic products, switches, routers, and complete ISP networking solutions. You can buy the C-DATA FD1604E-C1 4-Port GPON OLT with competitive pricing, 2-year warranty, and reliable after-sales support. Our team can help you choose the right OLT based on your subscriber capacity, GPON split ratio, fiber distance, uplink requirements, and ISP network design.
FAQs About C-DATA GPON OLT In Bangladesh
What is the C-DATA FD1604E-C1 GPON OLT?
The C-DATA FD1604E-C1 is a 4-port GPON Optical Line Terminal (OLT) designed for FTTH, ISP, broadband, and fiber access network deployments.
How many GPON ports does FD1604E-C1 have?
It has 4 GPON ports, allowing network operators to build scalable fiber access networks.
What is the GPON speed of C-DATA FD1604E-C1?
Each GPON interface supports up to 2.5Gbps downstream and 1.25Gbps upstream.
What is the maximum transmission distance?
The FD1604E-C1 supports a stated transmission distance of up to 20 km, depending on the optical network design and operating conditions.
What is the maximum GPON splitting ratio?
The OLT supports a maximum GPON splitting ratio of 1:128, subject to optical budget and network design requirements.
Which fiber does C-DATA FD1604E-C1 support?
It supports 9/125μm Single Mode Fiber (SMF) with an SC/UPC interface.
How can the C-DATA GPON OLT be managed?
It supports CLI, SNMP, Telnet, SSH, and Web-based management, providing multiple options for network administrators.
Is C-DATA FD1604E-C1 suitable for an ISP network?
Yes. Its 4 GPON ports, Gigabit uplinks, long-distance fiber support, high split ratio, and multiple management methods make it suitable for FTTH and ISP network deployments.
