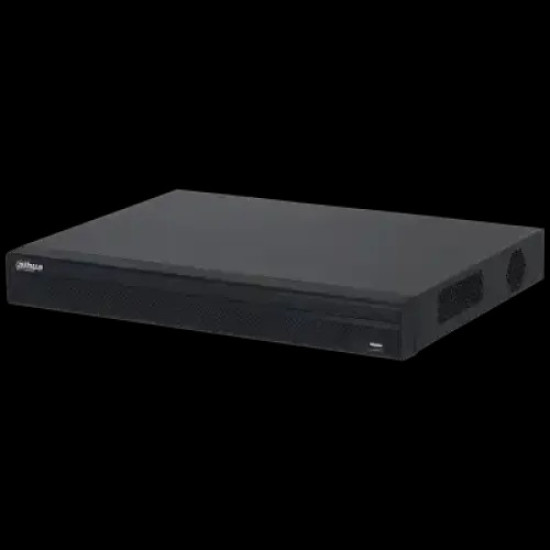

Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder (NVR)

The Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder (NVR) provides reliable video management and high-efficiency AI capabilities for sophisticated surveillance systems. With its support for Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG decoding, this NVR effectively lowers storage and bandwidth needs. It offers outstanding video quality and clarity with a maximum decoding capability of 8 channels at 1080p or 2 channels at 8 MP, and support for IP cameras up to 12 MP. With performance changes for AI-enabled modes, the Dahua NVR4232-4KS3 32 Channel NVR can handle up to 160 Mbps for incoming, 128 Mbps for recording, and 60 Mbps for outgoing bandwidth. While AI by Camera supports a wide range of capabilities, such as face identification and recognition, perimeter security, people counting, stereo analysis, and heat maps, AI by Recorder provides 2-channel SMD Plus. With an embedded Linux operating system and an industrial-grade processor, the Dahua NVR4232-4KS3 32 Channel 1U 2 HDD NVR boasts an easy-to-use interface that can be accessed via a local or web GUI. It has two SATA ports that can hold up to 20 TB apiece, so there is plenty of storage. Additionally, it offers a wide range of alarm choices, including intelligent alarms for face detection and SMD Plus to reduce false alarms, anomaly alarms for problems like IP conflicts, and basic alarms for motion detection and privacy masking. This Dahua NVR4232-4KS3 32 Channel 1U 2 HDD Network Video Recorder has a VGA output and an HDMI output (3840 × 2160 max resolution) for smooth connectivity. It also has multi-screen display options for both normal and AI-enabled viewing. Additionally, it enhances interoperability by supporting a range of network protocols and third-party camera integration using ONVIF. With features like rapid playback, USB/network backup choices, and compatibility with iOS and Android mobile apps, the NVR4232-4KS3 is a strong, scalable solution for sophisticated surveillance systems that is perfect for companies that need dependable monitoring and high-definition video storage .

 SPECIFICATION :

System

Main Processor : Industrial-grade processor

Operating System : Embedded LINUX

Audio and Video

IP Camera Input : 32 Channel

Two-Way Talk : 1 Channel Input, 1 Channel Output, RCA

Display

Interface : 1 HDMI, 1 VGA

Resolution : 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 ×                    720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Recording

Compression : Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.

Resolution : 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF

Bit Rate : Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth

Record Mode : General, motion detection; intelligent; alarm
