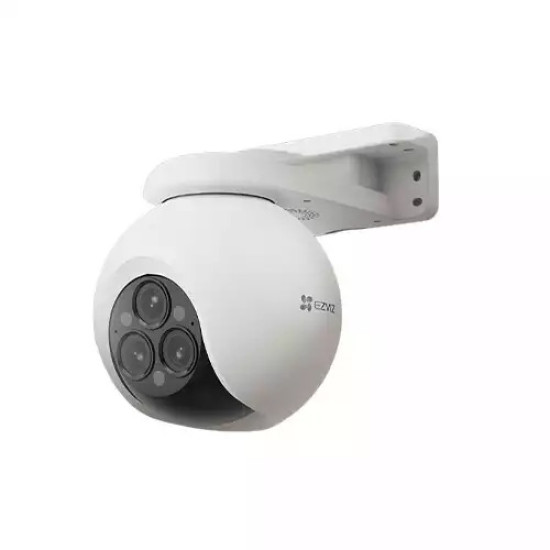

EZVIZ H80f Multi 2K⁺ Triple-Lens Smart Home Wi-Fi Camera
EZVIZ H80f Multi 2K⁺ is an advanced triple-lens smart Wi-Fi security camera designed to deliver superior home and business surveillance. Equipped with three separate lenses — 2.8mm, 6mm, and 12mm — it provides wide, mid, and telephoto views simultaneously, ensuring nothing escapes your attention. It's 2K⁺ (2560 × 1440) resolution captures crystal-clear details, while H.265 video compression saves bandwidth and storage without compromising quality. With 340° pan and 70° tilt, this camera covers nearly every angle. The 30m night vision and F1.6 large aperture lenses ensure bright, detailed images even in near-total darkness. AI-powered human and vehicle detection, along with auto zoom tracking, make monitoring smarter and more efficient by reducing false alerts and focusing on real threats. Connectivity is simple with 2.4GHz Wi-Fi or wired RJ45 Ethernet, and local storage is supported with microSD cards up to 512GB, plus EZVIZ CloudPlay subscription options. The camera is IP67 weatherproof, making it perfect for outdoor use, and includes two-way talk so you can communicate in real time with anyone near the camera. Built for reliability, it operates in extreme conditions (-30°C to 50°C) and uses just 18W of power. Setup is quick with AP pairing and configuration through the EZVIZ app.
specification :
Storage
Storage :Local Storage: Supports microSD card (Max. 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (subscription required)
Display
Image Sensor: 1/3” Progressive Scan CMOS * 3
Camera
Camera Feature : PT Angle Pan: 340°, Tilt: 70°
Minimum Illumination: 0.05 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Night Vision: 30 m / 98 ft
LENS : 2.8mm @ F1.6, viewing angle: 54° (Vertical), 96° (Horizontal), 110° (Diagonal)
6mm @ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 60° (Diagonal)
12mm @ F1.6, viewing angle: 14° (Vertical), 25° (Horizontal), 29° (Diagonal)
Shutter Speed : Self-adaptive shutter
Networking & Connectivity
LAN : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
WiFi
Wi-Fi Standard: IEEE802.11b , 802.11g , 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64 / 128-bit WEP , WPA / WPA2 , WPA-PSK / WPA2-PSK
Transmission Rate: 11b : 11Mbps , 11g : 54Mbps , 11n : 150Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol
Battery And Power
Power
Power Supply: DC 12 V / 1.5 A
Power Consumption: Max. 18 W
Video Features
Video Resolution : 2560 × 1440
Video
Frame Rate: Self-adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Quad HD, Full HD, HD adaptive bit rate
Audio Bit Rate: Self-adaptive
Special Features
Water Resistant : IP67
Other Features
Certifications: CE / UL / WEEE / RoHS / REACH
Physical Specification
Color : White
Weight : 575.7 g
Dimension : 168 × 112 × 156 mm
Technical Info
Function : Smart Alarm: AI-Powered Human Shape Detection / Vehicle
Customized Alert Area: Detection
Two-Way Talk: Supports
Auto Zoom Tracking Supports
General Function: Anti-Flicker, Dual-Stream, Heartbeat, Password Protection, Watermark
Warranty Information
Warranty : 1 Years
