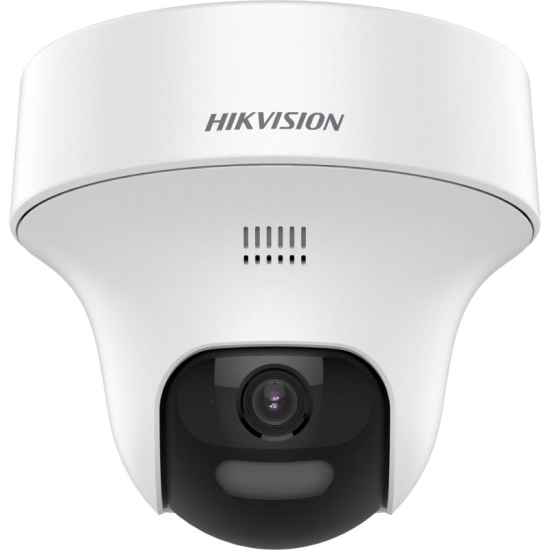

HIKVISION DS-2CE70D0T-PTLTS 2MP Two Way Audio Fixed PT Camera

This 2MP Full HD analog camera delivers clear video performance with smart lighting, built-in audio support, and reliable durability for indoor and outdoor use.

 Camera & Imaging

• Image Sensor: 2MP CMOS

• Maximum Resolution: 1920 × 1080 (Full HD)

• Minimum Illumination:

  • 0.01 Lux @ (F1.6, AGC ON)

  • 0 Lux with IR

• Shutter Speed:

  • PAL: 1/12.5s to 1/50,000s

  • NTSC: 1/15s to 1/50,000s

• Day & Night: ICR (Auto/Color Mode)

• Signal System: PAL / NTSC

 Lens Details

• Lens Options: 2.8mm or 3.6mm Fixed Lens

• Lens Mount: M12

Field of View (FOV)

• 2.8mm Lens:

  • Horizontal: 105°

  • Vertical: 59°

  • Diagonal: 127°

• 3.6mm Lens:

  • Horizontal: 87°

  • Vertical: 46°

  • Diagonal: 105°

 Angle Adjustment

• Pan: 0° to 350°

• Tilt: 0° to 100°

Allows flexible positioning for optimal coverage.

 Smart Lighting

• Supplement Light Type: Smart, IR, White Light

• IR Distance: Up to 25 meters

• White Light Distance: Up to 20 meters

Ensures clear imaging even in complete darkness.

 Image Features

• Frame Rate: TVI 1080p @ 25/30 fps

• Wide Dynamic Range: Digital WDR

• Image Enhancement Modes: DWDR, BLC, HLC, Global, HLS

• Noise Reduction: 2D DNR

• Image Settings: Anti-banding, Brightness, Sharpness, Smart IR

• White Balance: Auto / Manual

 Audio Features

Microphone

• Pickup Distance: Up to 5 meters

• Quantity: 1 Built-in Mic

Speaker

• Rated Power: 2W

• Range: Up to 5 meters

Audio Functions

• Echo Cancellation

• AI Noise Reduction

• Automatic Gain Control

 Interface & Power

• Video Output: 1 HD Analog Output

• Power Supply: 12 VDC ± 25%, Max. 8.7W

  • (15VDC adapter recommended for long/high-impedance cables)

 Build & Environment

• Material: Plastic

• Dimensions: Ø123.7 mm × 110.8 mm

• Weight: Approx. 340g

• Operating Temperature: -40°C to 60°C

• Humidity: ≤ 90% (Non-condensing)

• Communication: HIKVISION-C

• Language: English

This camera provides reliable Full HD performance, smart hybrid lighting, built-in audio, and durable operation, making it suitable for home, office, and commercial surveillance applications.
