| Display Features | |
| Max. Resolution | 2880 ×1620 |
| Viewing Angle | Fixed Lens：Horizontal FOV: 83.2°, Vertical FOV: 52.9°, Diagonal FOV: 90.7° PT Lens：Horizontal FOV: 51.4°, Vertical FOV: 29.3°, Diagonal FOV: 56.9° |
| Generel information | |
| Effective Pixels | 5MP+5MP |
| Image Sensor | 1/3" Progressive Scan CMOS sensor |
| IR Distance | 850nm Up to 30 m/100 ft (depending on environment) |
| Wireless Connection | IEEE 802.11 b/g/n/ax |
| Lens | Dual Lens (Fixed Lens & PT Lens) |
| Frame Rate | 1-15fps, Default 15fps |
| Audio | Two-way Audio |
| Pan & Tilt | Pan：0°to 260° |
| Alarm | Both fixed lens and PT lens are supported human detection, vehicle detection, non-motor vehicle detection, line crossing Detection, intrusion detection |
| Button | 1x Reset Button |
| Key Features | |
| Video Compression | H.265, H.264 |
| Power | |
| Power Supply | 12V DC |
| Others | |
| Storage | Micro SD card (Up to 512 GB) |
| Network | |
| Network Function | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port ONVIF: Both fixed lens and PT lens are supported |
| Physical Information | |
| color | White & Black |
| Dimension | 203mm x 122mm x 162mm |
| Weight | 575g |
| Warranty Information | |
| Warranty | 1 years |

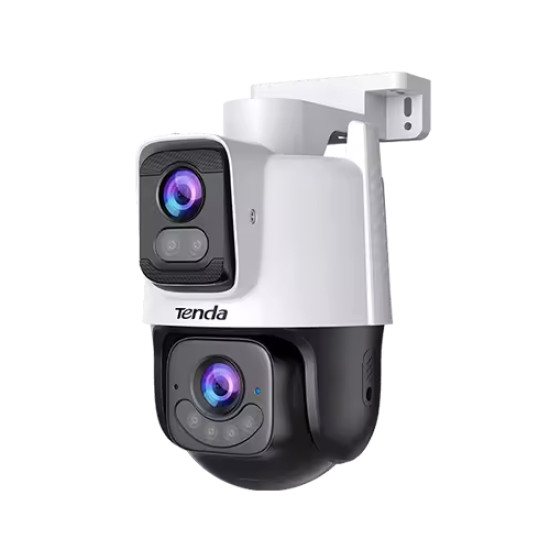

The Tenda CH10 Dual 3K 10MP Outdoor WiFi Camera is a smart outdoor surveillance camera designed for homes, shops, offices, warehouses, entrances, and other areas that require wider security coverage. It combines dual 5MP lenses, 3K resolution, PT movement, human and vehicle detection, two-way audio, night vision, and WiFi connectivity in one camera. With 5MP + 5MP effective pixels and a maximum resolution of 2880 × 1620, the Tenda CH10 Outdoor WiFi Camera can provide detailed video for everyday security monitoring. The Tenda CH10 uses a dual-lens configuration with a fixed lens and PT lens. This design allows you to monitor different areas using two camera views from a single device. The fixed lens provides up to 90.7° diagonal FOV, while the PT lens provides up to 56.9° diagonal FOV. The PT lens supports 0° to 260° pan, helping you adjust the viewing direction according to your surveillance requirements. This makes the Tenda CH10 Dual 3K Camera useful for monitoring entrances, yards, parking areas, shop fronts, and other outdoor spaces. The camera supports intelligent detection features for more practical security monitoring. Both the fixed lens and PT lens support human detection, vehicle detection, non-motor vehicle detection, line-crossing detection, and intrusion detection. These features can help reduce unnecessary alerts and make it easier to identify important events around your property. The Tenda CH10 WiFi Camera uses 850nm IR technology and provides night vision up to 30 meters / 100 feet, depending on the environment. This allows the camera to continue monitoring outdoor areas in low-light and nighttime conditions. It also supports two-way audio, allowing you to listen to the monitored area and communicate through the camera when supported by the Tenda application and network connection. The camera supports IEEE 802.11b/g/n/ax WiFi, providing wireless connectivity for compatible networks. It also includes 1× RJ45 10/100Mbps Ethernet port for wired network connections. For local recording, the Tenda CH10 Dual Lens Camera supports a MicroSD card up to 512GB. It also supports H.265 and H.264 video compression, helping manage video storage requirements. The camera supports ONVIF for both fixed and PT lenses, making it useful for compatible surveillance systems and NVR setups.
BM Dubai Tech is a trusted network and security product shop in Bangladesh, offering Tenda WiFi cameras, CCTV cameras, NVRs, routers, switches, XPON ONTs, and complete networking solutions. You can buy the Tenda CH10 Dual 3K 10MP Outdoor WiFi Camera at a competitive price with 1-year warranty and reliable after-sales service. Our team can help you choose the right security camera according to your coverage area, night vision requirements, storage capacity, AI detection needs, WiFi connectivity, and NVR compatibility.
What is the Tenda CH10 Dual 3K Camera?
The Tenda CH10 is a dual-lens outdoor WiFi security camera with 5MP + 5MP sensors, 3K resolution, PT movement, AI detection, and night vision.
Is Tenda CH10 a 10MP camera?
Yes. It has 5MP + 5MP effective pixels, giving it a total 10MP dual-lens configuration.
Does Tenda CH10 support night vision?
Yes. It provides 850nm IR night vision up to 30 meters / 100 feet, depending on environmental conditions.
Does Tenda CH10 support human and vehicle detection?
Yes. Both camera lenses support human, vehicle, and non-motor vehicle detection, along with line-crossing and intrusion detection.
Does Tenda CH10 have two-way audio?
Yes. The camera supports two-way audio, allowing compatible users to communicate through the camera.
Can Tenda CH10 record to a memory card?
Yes. It supports a MicroSD card with capacity up to 512GB.
Does Tenda CH10 support ONVIF?
Yes. ONVIF is supported for both the fixed lens and PT lens, allowing compatibility with supported surveillance systems.
Is Tenda CH10 suitable for outdoor use?
It is designed as an outdoor WiFi camera for applications such as entrances, yards, parking areas, shops, and other outdoor monitoring locations. For installation, choose a suitable protected location based on the environmental conditions.
