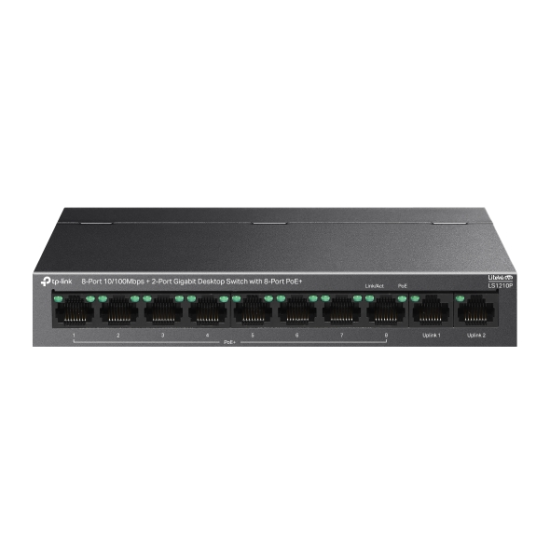

The TP-Link TL-LS1210P is a powerful and efficient PoE switch designed for surveillance systems, offices, and small business networks. It offers high-speed connectivity along with advanced PoE management features.
Ports
-
8 × 10/100 Mbps PoE+ Ports
-
2 × Gigabit Non-PoE Ports
Network Standards
Supports IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3af, 802.3at, and IEEE 802.3ab standards.
Access Method
-
10BASE-T: UTP Cat 3/4/5 cable (up to 100m)
-
100BASE-TX: UTP Cat 5 or higher (up to 100m)
-
1000BASE-T: UTP Cat 5e or higher (up to 100m)
Advanced Functions
-
Extend Mode (Ports 1–8)
-
Isolation Mode (Ports 1–8)
-
PoE Auto Recovery (Ports 1–8)
Performance
-
Transmission Method: Store-and-Forward
-
Switching Capacity: 5.6 Gbps
-
Packet Buffer Memory: 2 Mbit
-
Jumbo Frame Support: 2 KB
-
MAC Address Table: 2K
Hardware Features
-
LED Indicators: Power, Link/Act, PoE Status
-
PoE Standard: IEEE 802.3af/at compliant
-
Total PoE Power Budget: 96W
-
Maximum Power Consumption: 99.52W
-
Power Supply: External Adapter (220–240V, 50/60Hz; Output: 53.5V DC / 1.92A)
-
Dimensions: 171 × 98 × 27 mm (6.7 × 3.9 × 1.1 in)
Environmental Conditions
-
Operating Temperature: 0°C to 40°C
-
Storage Temperature: -40°C to 70°C
-
Operating Humidity: 10%–90% (non-condensing)
-
Storage Humidity: 5%–90% (non-condensing)
Warranty
2 Years Manufacturer Warranty
